This is the Most Popular and Most economical Load cell meant for Single Point loading applications. It is used in bench, counting and postal Scales. It is strain gauge based Load cell constructed from Aluminum Alloy for better sensitivity.
| Red | Excitation + |
| Black | Excitation - |
| Green | Signal + |
| Yellow | Signal - |
| Performance Specification | |
|---|---|
| Standard Capacities | 3, 6, 10, 15, 20, 30, 40, 60 - Kgf |
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Nominal Output | 2.0 mV/ V |
| Non - Linearity | < ±0.025% FSO |
| Hysteresis | < ±0.02% FSO |
| Non-Repeatability | < ±0.01% FSO |
| Creep (30 minutes) | < ±0.03% FSO |
| Zero Balance | ±1.0% FSO |
| Input Resistance | 400 ± 15 Ohms |
| Output Resistance | 350 ± 5 Ohms |
| Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
| Cable Length (4 Core Screened) | 500 mm. Minimum |
| Safe Overload of Rated Capacity | 150% |
| Ultimate Overload of Rated Capacity | 200% |
| Temp. Compensated Range | 0-60 0C |
| Temperature Effect on Output | < 0.0015% FSO/ 0C |
| Temperature Effect on Zero | < 0.0020% FSO/ 0C |
| Platter Size | 150mm X 150mm |
| Eccentric Load Effect | < 0.02% of FSO at 1/3 rated load placed within the specified sized platter |
| Deflection | < 0.5 mm at FSO |
| Tightening Torque | 1.5 m.kg. |
| Finish & Construction | Aluminium Alloy |
| Environmental Protection Class | IP65 |

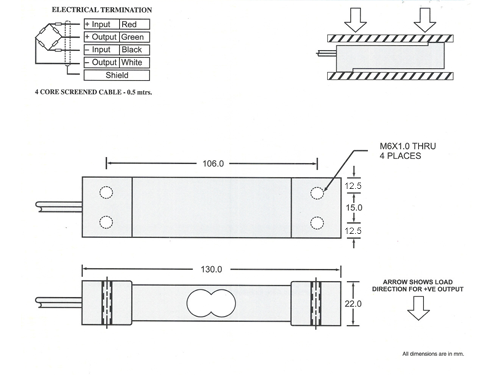

Dimension (mm) : Size: 130x30x22(mm) Thread hole: M6, CTC 15mm
